Taw qhia
DX-2012R series multi-pole magnetic field distribution tester yog ib qho khoom siv uas tuaj yeem muab XY kev tswj hwm, P polar tswj cov ntaub ntawv sib nqus sib nqus sib nqus, thiab tuaj yeem ntes peb-dimensional sib nqus teb kev faib tawm, txhawm rau txhawm rau ntsuas qhov sib nqus xeev. Tsis tas li ntawd xwb, tus tester kuj tseem muaj kev tsom xam kev sib raug zoo thiab lwm yam haujlwm, muab cov neeg siv nrog cov ncauj lus kom ntxaws thiab qhia txog kev tshawb nrhiav. Cov yam ntxwv zoo li no ua rau nws ua lub luag haujlwm tseem ceeb hauv kev tshawb pom zoo ntawm ntau yam khoom sib nqus lossis cov khoom siv xws li cov hlau nplaum ruaj khov, cov hlau nplaum ruaj khov stator lossis rotor, DC teb coil, electromagnet thiab lwm yam.
DX-2012R series nto magnetic teb faib ntsuas ntsuas yog ua raws li Dexinmag lub tuam txhab kev tshawb fawb tob thiab kev txhim kho lub zog thiab kev siv thev naus laus zis, ua ke nrog cov cuab yeej ua haujlwm siab, kev tswj xyuas ntse thiab kev ua haujlwm ntawm tib neeg, tuaj yeem ntsuas qhov sib nqus sai thiab raug. teb lub zog thiab kev taw qhia ntawm txhua cheeb tsam nyob rau hauv multi-pole magnetic teb. Nws muab kev txhawb zog rau kev tshawb fawb tshawb fawb, kev tsim khoom lag luam thiab kev kuaj mob.
Qhov peb-axis magnetic field mapping device no yog tsim los nrog qhov kev sim xav tau tiag tiag hauv siab thiab tuaj yeem nruab nrog ntau yam kev sim ntsuas, xws li peb-dimensional test probes, rotating platforms lossis loading platforms, hloov mus rau cov khoom sib txawv thiab cov xwm txheej. . Nws lub siab concentricity tsim kom ntseeg tau qhov tseeb thiab kev ntseeg siab ntawm cov ntaub ntawv xeem, thiab kev sojntsuam rov qab qhov tseeb yog qhov siab, ua rau cov txiaj ntsig tau zoo dua. Tsis tas li ntawd, qhov chaw scanning ntawm cov khoom nce mus txog 800mm800mm800mm, uas tuaj yeem ua tau raws li qhov yuav tsum tau ua ntawm kev xeem feem ntau, txawm tias nws yog cov hlau nplaum loj lossis cov khoom sib nqus me me, nws tuaj yeem yooj yim ntsuas cov khoom sib nqus.
DX-2012R multi-pole magnetic field distribution tester ua hauj lwm hauv paus ntsiab lus
Lub multipole magnetic teb faib tester siv ib tug advanced Hall nyhuv sensor los yog magnetoresistive sensor ua ke nrog ib tug high-ceev cov ntaub ntawv acquisition system thiab raug algorithms los ntsuas lub magnetic teb lub zog thiab kev taw qhia nyob rau hauv lub sij hawm. Lub sensor array npog ntau qhov chaw ntsuas thiab tshem tawm ib puag ncig kev cuam tshuam thiab kev ua yuam kev los ntawm kev ua kom zoo dua qub thiab kev them nyiaj thev naus laus zis.
DX-2012R series nto magnetic teb faib ntsuas ntsuas
|
Khoom npe |
DX-2012RA |
DX-2012RB |
DX-2012RC |
DX-2012RD |
|
Kev tsom xam ob-dimensional |
√ |
√ |
√ |
√ |
|
Rectangular coordinate zaub |
√ |
√ |
√ |
√ |
|
Polar coordinate zaub |
√ |
√ |
√ |
√ |
|
Axial 3D faib |
√ |
√ |
√ |
√ |
|
Oblique charging test |
|
√ |
√ |
√ |
|
Nrog ib-dimensional dav hlau piav qhia |
|
|
√ |
√ |
|
Peb-dimensional magnetic teb piav qhia |
|
|
|
√ |

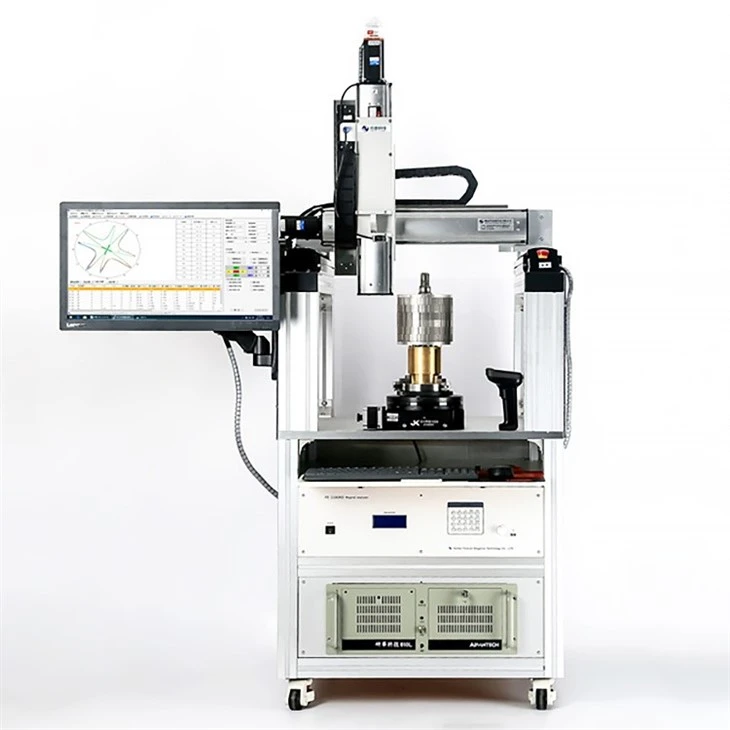

Ntsuas lub hauv paus ntsiab lus ntawm DX-2012R magnetic field mapping equipment
Ib. Kev sib xyaw
1. Muaj lub computer thiab ntsuas software: raws li lub hauv paus ntawm tag nrho cov system, nws yog lub luag hauj lwm rau xa cov lus txib, tswj cov kev taw qhia trajectories, thiab ua cov ntaub ntawv sau.
2. Kev tswj kev txav chaw: tau txais cov lus qhia ntawm lub tshuab computer, ua kom tiav cov txheej txheem kev txav mus los, thiab xyuas kom meej qhov kev ua tiav ntawm cov txheej txheem xeem.
3. Cov ntaub ntawv khaws cia: nruab nrog Hall sensor, nws yog siv los sau cov ntaub ntawv sib nqus hauv X, Y thiab Z cov lus qhia, thiab xa cov ntaub ntawv mus rau lub computer hauv lub sijhawm.
2. Cov yam ntxwv
1. Peb-axis hluav taws xob tswj mobile platform: aluminium alloy khoom ua, nrog zoo heev stability thiab durability; Cov duab thiab loj tuaj yeem kho raws li cov neeg siv khoom xav tau.
2. High-precision tsav thiab positioning: stepper tsav tsav, rov raug mus txog ±0 01mm, kauj ruam daws teeb meem txog 0.01mm

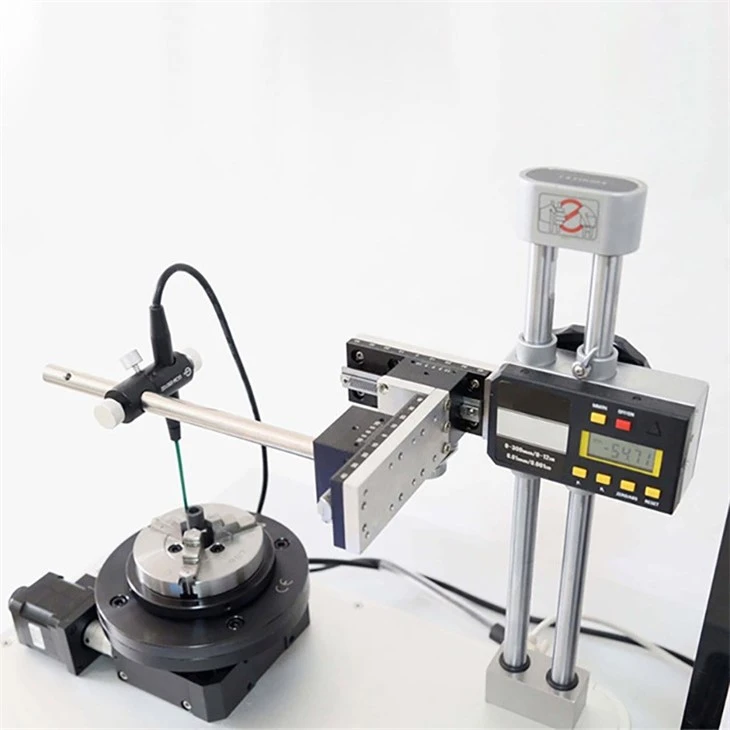

3. Zoo chuck thiab rotating kev ua tau zoo: siv Taiwan peb lub puab tsaig chuck, lub concentricity yog zoo dua li 0.05mm; Qhov kev daws teeb meem ntawm lub kaum sab xis yog mus txog 0.01 degree, thiab qhov tsis paub tseeb ntawm kev xa rov qab tsuas yog ± 0.005 degree, uas ua tau raws li qhov xav tau ntawm kev ntsuas siab.
4. Kev ntsuas ceev nrawm: Qhov ntsuas ceev ncav cuag 30-60 vib nas this/lub lim tiam (xauv), ua kom zoo dua qhov kev sim thiab ua kom lub voj voog luv luv.
5. Multiscale data acquisition: data acquisition system muaj xya yam tsis siv neeg, feem yog 0.2 k / 0.4 k / 1 k / 2 k / 4 k / 10 k / 20 KGS, mus rau ua tau raws li qhov xav tau ntawm qhov sib txawv magnetic teb lub zog kuaj.
6. High precision thiab repeatability: ntsuas qhov tseeb ncav cuag 1.0%, repeatability yog 0.3%.
7. Kev daws teeb meem siab: Qhov kev daws teeb meem sib haum rau 1.0% ntawm tag nrho cov nplai ntawm txhua cov ntaub ntawv (hauv qab 400g, 0.1g yog siv tau).
8. Txheem magnetic teb calibration: Nruab nrog ib tug qauv magnetic teb, lub magnetic teb lub zog yog 1000Gs ± 5Gs, qhov tseeb calibration ncav cuag 0.5%, uas yog siv rau calibration tsis tu ncua ntawm lub ntsuas ntsuas kom paub tseeb tias qhov tseeb. ntawm qhov kev xeem tau.
Technical parameters ntawm stepper tsav tsav
|
Tsis muaj |
X axis |
Y axis |
Z axis |
|
Kev khiav deb |
200 hli |
200 hli |
150 hli |
|
Kauj ruam daws teeb meem |
0.01 hli |
0.01 hli |
0.01 hli |
|
Tsis paub meej txog kev rov qab los |
± 0.01 hli |
± 0.01 hli |
± 0.01 hli |
|
Qhov ceev tshaj plaws |
20mm / sec |
20mm / sec |
20mm / sec |
|
Fais fab mov |
12V ~ 40VDC |
|
Muaj peev xwm |
0.1KVA |
|
Cov zis tam sim no |
Peak 2.6A / theem (Max) |
|
Tsav hom |
Qhov chaw vector bipolar tas li tsav tam sim no |
|
Txoj kev zoo siab |
Kaum rau lub subdivision hom muaj |
|
Rwb thaiv tsev tsis kam |
Nyob rau hauv ib txwm kub thiab siab ≥100MΩ |
|
Rwb thaiv tsev zog |
0.5KV nyob rau hauv qhov kub thiab txias, 1Min |
|
Rooj diam |
100 hli |
|
Kev sib kis |
180:1 |
|
Kev daws teeb meem (8 subdivisions) |
0.00125 degree |
|
Rov ua dua qhov tseeb |
＜{0}}.005 degree |
|
Qhov ceev tshaj plaws |
25 degree / s |
|
Stepper lub cev muaj zog |
2 faaj |
|
Qhov siab tshaj plaws static torque |
40 ncm |
|
Qhov siab tshaj plaws nruab nrab load |
50kg ua |
Cov txiaj ntsig kev xeem ntawm multistage magnetic nplhaib rau siv:
