Bh Tracer Hysteris Kab Cav - Sib Nqus Cov Khoom Sib Nqus Cov Khoom Siv
TusBh Tracer Heelyab kab teeb meem(DX -2012 h series yog ib tug precision-encessered sib nqus ntawm cov khoom sib nqus hauv cov hlau nplaum xws liNdFeb, Smco, Ferrite, thiabAlmnicoCov. Tsim rau Qib R & D Lub Chaw Haujlwm, Chaw Tsim Tshuaj, thiab Kev Kawm Txuj Ci, cov ntsuas hluav taws xob txhim khu kev ua kom nrawm, Magnetization, Demagnetization, thiab ntau dua.
Khoom Taw Qhia
Lub DX -2012 h mus rau cov khoom siv sib nqus tas mus li yog qhov ntsuas tau zoo heev uas tau siv dav hauv ntau yam kev lag luam thiab cov ntawv thov. Lub system yog tsim los txhawm rau pom tseeb thiab ntsuas cov khoom sib nqus ntawm cov khoom sib nqus ntawm ntau cov hlau nplaum cov khoom sib nqus, suav nrog ferrite,
Lub ntsiab muaj nuj nqi ntawm DX {0}} h system yog kom tau ntsuas cov khoom sib nqus, suav nrog cov khoom sib nqus thiab sib nqus Lub system yog nruab nrog cov kev ntsuas siab thiab cov ntaub ntawv tshaj lij ua kom muaj peev xwm ua tau zoo thiab ntseeg tau tias muaj kev sib tw ib puag ncig.
Dx {{{0} h system yog dav siv nyob rau hauv ntau yam kev lag luam, xws li kev lag luam hluav taws xob, nrog rau kev tshawb fawb lub chaw thiab cov tsev kawm qib siab. Qee cov kev siv ntawm cov kab ke suav nrog kev tswj hwm zoo thiab paub tseeb, tsim qauv, kev sib nqus, kev ntsuas sib nqus, thiab kev ntsuas sib nqus, thiab kev ntsuas sib nqus.
Lub DX -2012 h Qhov system yog ntau yam thiab tuaj yeem tsim kho kom tau raws li cov kev cai tshwj xeeb thiab kev xav tau ntawm kev lag luam sib txawv thiab kev siv. Lub system yog ib qho yooj yim rau kev khiav lag luam thiab tuaj yeem siv los ntawm ob novice thiab kev paub txog cov neeg siv
nrog kev cob qhia tsawg heev. Nws tseem muaj cov neeg siv-tus neeg siv interface uas tso cai rau cov neeg siv kom nrawm thiab yooj yim nkag thiab tshawb xyuas cov txiaj ntsig tau yooj yim thiab yooj yim.
Hauv kev xaus, DX -2012 h mus rau cov khoom siv sib nqus tas mus li yog qhov cuab yeej tseem ceeb rau txhua tus neeg ua haujlwm nrog cov khoom siv hlau nplaum ruaj khov. Nws cov txiaj ntsig siab thiab muaj peev xwm ua rau nws xaiv qhov zoo tshaj plaws rau ntau yam kev siv, thiab nws qhov tseeb thiab kev ntseeg tau yog thib ob rau tsis muaj. Nrog nws cov neeg siv-phooj ywg interface thiab customizable cov kev xaiv, dx {2}} h yog qhov ntsuas uas yuav ua kom zoo dua qub txheej txheem.
Kev qhia tshwj xeeb
|
Yam |
Tsis |
|
|

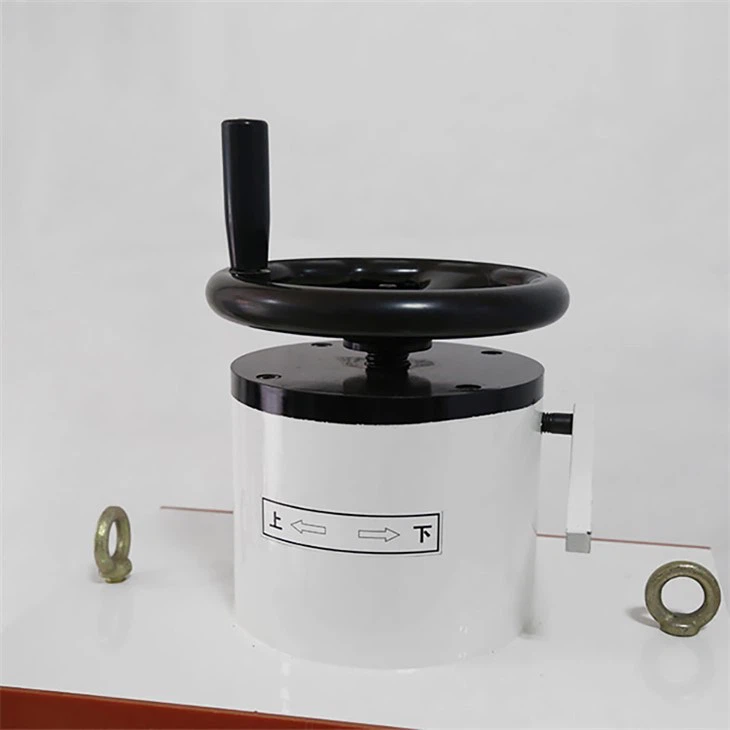

Electromagnet |
Dxt130 |
Lub taub hau diam: 130 hli Lub taub hau spacing: 0 ~ 50 hli (txuas ntxiv hloov) Maximal Daim teb sib nqus: 1.5t (lub taub hau sib nrug 10 hli, coil tam sim no 20a) |
|
Dxt -150 |
Lub taub hau uas lub taub: 150mm Ntsws rau 80mm Lub taub hau spacing: 0 ~ 50 hli (txuas ntxiv hloov) MAXIMAL SIB SIB HLAU: 2.4t (Lub Taub Hau Txuas 10 hli, kauj tam sim no 30a) |
|
|
Dxt -200 |
Lub taub hau uas lub taub: 200mm yuav ntsws mus rau 120 hli Lub taub hau spacing: 0 ~ 50 hli (txuas ntxiv hloov) Maximal sib nqus: 2.4t (lub taub hau txuas 10 hli, coil tam sim no 40a) |
|
|
Dxt -250 |
Lub taub hau uas lub taub: 250mm ntsws mus rau 150 hli Lub taub hau spacing: 0 ~ 50 hli (txuas ntxiv hloov) Maximal sib nqus: 2.7t (lub taub hau txuas 10 hli, coil tam sim no 80a) |
|
|
Ntsuas Lub Hwj Chim |
Cov Zis Voltage: 0 100 v Tawm tshiab tam sim no: ± 20a (tus nqi siab tshaj) Stability: zoo dua rau 0. 05% Stability: zoo dua rau 0. 05% |
|
|
DX -210 b bluxmeter |
NTAU YAM: 2.5, 5, 10, 20MWB Tag nrho cov kev qhia tag nrho: 0. 5% XOOM KHIAV: 2μDB / 30 SELFAS (2.5MWB) |
|
|
DX -210 h MAACTETOMETEV |
Ntau yam: {0. 5, 1, 1.5, 3t Tag nrho cov kev qhia tag nrho: 0. 5% Tsis-linearity: ± {0. 2% (software kho) |
|
|
PC6616 A / DD / ib daim npav |
A / D hloov dua siab tshiab: 16 qhov me me, 16 channel Kev hloov dua siab tshiab lub sijhawm: <10μμs Kev hloov dua siab tshiab: 0. 02% (tag nrho ntau) D / Kev hloov dua siab tshiab: 12 yam, 2 Raws Kev hloov dua siab tshiab: 0. 1% (tag nrho ntau) |
|
2.1configuration
2.2models rau siv
|
No. |
Qauv Khoom Qauv |
DX -2012 h130 |
DX -2012 h150 |
DX -2012 h200 |
DX -2012 h250 |
|
1 |
Electromagnet Qauv |
Dxt130 |
DXT150 |
Dxt200 |
DTXT250 |
|
2 |
Kuaj cov khoom siv fais fab |
2kw |
3kw |
4KW |
8Kw |
|
3 |
Cov kev teeb tsa fluxmeter |
Ib DX -210 b |
Ob dx -210 b |
||
|
4 |
Lub siab loj |
Dx -210 h |
|||
|
5 |
Cov ntaub ntawv tau txais daim npav |
PC6616 |
|||
|
6 |
Kev Ntsuas Software |
Hmursest ib nrab haujlwm |
Hmtest tag nrho cov haujlwm |
||
|
7 |
Koob piv tawj |
Dell Davty e -520 n Computer |
|||
|
8 |
Cov tshuaj txheem txheem txheem |
Ib Al Alnico Txheem Qauv |
|||
|
9 |
Taag Kauj |
Ib b coil |
Ib j coil |
J coil + h chev |
J coil + h chev |
|
10 |
Kuaj cov khoom lag luam |
Almnico |
Almnico |
Almnico |
Almnico |
|
11 |
Qhov me me |
Inch 3 ~ 100 hli |
Dav Hlau Sib Nqus Sib Nqus: |
Dav Hlau Sib Nqus Sib Nqus: |
Dav Hlau Sib Nqus Sib Nqus: |
2.3 Yeem Txuas
|
No. |
Cov Npe Xaiv |
Cov lus piav qhia tau zoo |
Hais txog |
|
1 |
B coil |
Kev ntsuas qhov ncaj qha ntawm cov qauv sib nqus induction ntev, winding tsis tseem ceeb |
Mekas, thiab hloov kho tau rau qhov ntsuas ntawm cov khoom siv hlau loj-hlau nplaum |
|
2 |
J coil |
Kev ntsuas qhov ncaj qha ntawm cov qauv kev sib tw polarization, winding tsis tseem ceeb |
Mekas, thiab hloov tau rau kev ntsuas ntawm txhua cov ntaub ntawv-hlau nplaum |
|
3 |
Lub taub hau taub hau |
Ua haujlwm nrog lub tshuab hluav taws xob los tsim cov uniform sib nqus teb |
DCT130 tus qauv kev teeb tsa, lwm tus qauv xaiv |
|
4 |
Horn taub hau |
Tsim kom muaj qhov loj dua Uniform sib xeem sib nqus |
Txhua tus qauv ntawm cov tshuab hluav taws xob yeem |
|
5 |
Shrinkage taub hau |
Siv los txhim kho qhov kev sib nqus Maximal sib nqus ntawm lub tshuab hluav taws xob |
DCT130 xaiv tau, lwm cov qauv nrog cov qauv kev teeb tsa |
|
6 |
Hlau Cobalt Lub Taub Hau |
Tuaj yeem txhim kho qhov kev sib nqus maximal rau txog 0. 3t |
Tsuas yog DCT200 thiab DCT250 Yeem |
|
7 |
Lub taub hau kub taub hau |
Qhov no siv rau kev ntsuas cov hluav taws kub ntawm cov khoom siv-hlau nplaum tas mus li |
Txhua tus qauv ntawm cov tshuab hluav taws xob yeem |
|
8 |
Tcs -200 kub maub los |
Siv los tswj qhov kub ntawm lub taub hau kub, tswj ntau yam: 50 ~ 250 degree |
Yeem, tuaj yeem phim nrog ntau lub taub hau kub |
|
9 |
Pobzeb Jig |
Qhov no siv rau kev ntsuas cov khau sib nqus |
Cov chaw xaiv, kho raws li cov khoom sib nqus khau loj, kom phim hluav taws xob nrog kev sib raug zoo |
Khoom nta thiab daim ntawv thov
● Cov kev ua haujlwm: yeej xp / 7/8/10/10 / english or oper oper oper oper;
● Cov lus hais lus: Txhawb cov lus Suav lossis lus Askiv cov zaub;
Cov yam ntxwv kev ua haujlwm:
(1) Cov kev ntsuam xyuas nthwv dej tawm tau pom nyob rau lub sijhawm tiag tiag thaum ntsuas, thiab ntsuas tau nres thaum twg los tau;
(2) Lub software tuaj yeem tso tawm txog 4 ntsuas seb puas nkhaus ntawm tib lub sijhawm, thiab piv qhov sib txawv raws li cov kev mob sib txawv ntau dua;
(3) Cov software tau ua-hauv cov coefficients ntawm ntau yam ntaub ntawv, uas tuaj yeem muab cov ntaub ntawv siv rau kev ntsuas kub;
(4) Qhov ntsuas ntsuas yog 30-120}} vib nas this (nyob ntawm seb tus qauv qauv thiab kev ua haujlwm ntawm tus neeg teb xov tooj);
● Cia Nta:
(1) Kev ntsuas cov txiaj ntsig tau txais kev cawm dim (txuag los ntawm tus lej xeem lossis khaws tseg los ntawm kev cuam tshuam ntawm kev tiv thaiv phau ntawv)
(2) piv txwv tus lej, qhov loj me, lwm yam ntaub ntawv tuaj yeem cia li tau txais kev cawmdim los txo kev tswj hwm kev ua yuam kev;
(3) Lub software muaj luam tawm cov haujlwm ua ntej, thiab tseem tuaj yeem luam cov qhab nia ntsuas tau thiab cov kab khawb;
(4) Qhov ntsuas cov txiaj ntsig thiab cov kab nkhaus yuav ua rau cov ntaub ntawv duab xws li BMP, thiab tuaj yeem siv rau cov software uas yog cov ntaub ntawv zoo li qub;
