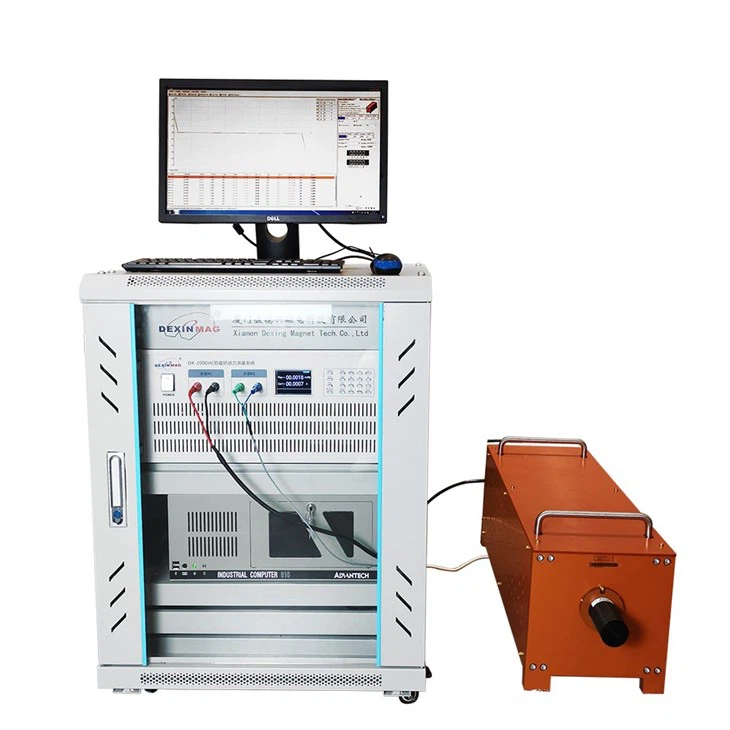

DX-2000HC Mos magnetic coercivity ntsuas qhov system yog cov cuab yeej siv qib siab tsis siv neeg sib nqus ntsuas tshwj xeeb tsim los ntsuas cov khoom sib nqus mos (xws li pas nrig, sawb, L shape, U shape, thiab lwm yam) coercivity Hc static magnetic yam tsis muaj.
Hais txog software, DX-2000HC siv Windows-raws li software ntsuas nrog tus neeg siv-phooj ywg thiab intuitive interface thiab cov txheej txheem ua haujlwm yooj yim nkag siab, yog li txawm tias cov neeg siv tsis yog cov kws tshaj lij tuaj yeem pib tau yooj yim. Lub software tso cai rau cov neeg siv yooj yim teeb tsa qhov ntsuas ntsuas, saib xyuas cov txheej txheem ntsuas hauv lub sijhawm, thiab tau txais thiab txheeb xyuas qhov ntsuas tau sai.
Txhawm rau kom ntseeg tau qhov tseeb thiab kev ntseeg siab ntawm cov txiaj ntsig ntsuas, DX-2000HC nruj me ntsis raws li cov qauv hauv tsev thiab txawv teb chaws, suav nrog Suav teb tus qauv GB3657-83, tus qauv kev lag luam SJ/T{{2 }} thiab tus qauv thoob ntiaj teb IEC60404-7. Cov qauv no tsis tsuas yog muab cov kev cai nruj rau cov txheej txheem, tab sis kuj ua kom lub ntiaj teb universality thiab lees paub ntawm qhov ntsuas ntsuas.
Raws li txoj cai ntsuas, DX-2000HC siv txoj hauv kev zoo tshaj plaws analog shocks, sib txuas cov tshuab computer tswj nrog A/D thiab D/A thev naus laus zis, thiab hloov cov tsoos shock galvanometer nrog lub tshuab hluav taws xob. Txoj kev ntsuas tshiab no tshem tawm qhov tsis ua yuam kev nyob rau hauv txoj kev cuam tshuam classical thiab txhim kho qhov ntsuas qhov tseeb thiab nrawm thaum ua kom muaj kev rov ua tau zoo. Tsis tas li ntawd, txij li lub khoos phis tawj tswj xyuas cov txheej txheem ntsuas tag nrho, kev cuam tshuam ntawm ntau yam tib neeg ntawm kev ntsuas cov txiaj ntsig tuaj yeem raug tshem tawm, uas muab lub hauv paus txhim khu kev qha rau kev kawm cov txheej txheem ntawm cov khoom siv hlau nplaum.
Khoom nta
Ntau yam ntawm cov qauv kuaj: DX-2000HC system txhawb ntau yam ntawm cov khoom sib nqus mos, suav nrog tab sis tsis txwv rau cov mos sib nqus ferrites, permalloy, amorphous, nanocrystals, hlau hmoov cores, electropure hlau, thiab silicon steel. nplooj ntawv. Qhov kev sib raug zoo dav dav no ua rau lub kaw lus ua tau raws li qhov xav tau ntawm kev siv txuj ci sib txawv thiab kev lag luam.
Ntau hom qauv duab: Lub kaw lus txhawb nqa qhib-circuit qauv ntsuas nyob rau hauv ntau yam duab, xws li pas nrig, daim ntawv, L-shaped, U-shape, thiab lwm yam. scenarios thiab cov kev xav tau ntawm kev sim.
Kev ntsuas ncaj qha: Lub kaw lus tuaj yeem ntsuas tus qauv ncaj qha nrog qhib solenoid thiab ntsuas cov cuab yeej. Cov qauv, magnetization coil (N1), thiab ntsuas coil (N2) ua ke ua ib qho kev ntsuas ua tiav los xyuas kom meej qhov tseeb thiab kev ntseeg siab ntawm kev ntsuas.
High-precision magnetic teb locking: Lub kaw lus indirectly ntsuas lub magnetic teb lub zog los ntawm kev ntsuas lub magnetization tam sim no, thiab nws magnetic teb locking raug yog mus txog rau 0.1%. Qhov siab precision no ua kom qhov tseeb thiab rov ua dua ntawm cov txiaj ntsig ntsuas.
Advanced electronic integrator technology: Tsis zoo li phau ntawv zeroing thiab stabilization txoj kev uas muaj nyob rau hauv lub lag luam, lub DX-2000HC system siv advanced electronic integrator technology.
Lub tshuab hluav taws xob integrator tus xoom clearing thiab stability adjustment yog tiav los ntawm software tsis muaj phau ntawv koom nrog, uas zoo heev txhim kho qhov kev ntsuam xyuas efficiency thiab raug.
Lub luag hauj lwm ntawm solenoids nyob rau hauv qhib-circuit qauv kuaj: Thaum ntsuas qhov qhib-circuit qauv, solenoids, raws li ib tug tseem ceeb Cheebtsam, ua lub luag hauj lwm tseem ceeb nyob rau hauv kev ua kom muaj kev ruaj ntseg thiab qhov tseeb ntawm lub ntsuas system los ntawm precisely tswj tam sim no nyob rau hauv lub solenoid; ib qho chaw sib nqus ruaj khov tuaj yeem tsim tau, ua kom muaj qhov ntsuas qhov tseeb ntawm cov qauv.
Simulation impact method test method: Lub kaw lus tau txais txoj kev simulation cuam tshuam raws li txoj kev sim thiab ntsuas cov yam ntxwv sib nqus ntawm cov qauv los ntawm simulating cov txheej txheem cuam tshuam tiag tiag. Txoj kev no tuaj yeem ntsuas qhov kev quab yuam quab yuam Hc tus nqi ntawm cov yam ntxwv sib nqus, uas muab lub hauv paus txhim khu kev qha rau kev kawm ntawm cov txheej txheem magnetization txheej txheem ntawm cov ntaub ntawv.
Tsis siv neeg xoom muaj nuj nqi: Ua ntej txhua qhov kev xeem, qhov ntsuas qhov system yuav cia li xoom ua haujlwm kom ntseeg tau qhov tseeb ntawm qhov ntsuas ntsuas. Qhov kev ua haujlwm no txo qhov cuam tshuam ntawm tib neeg kev ua yuam kev thiab txhim kho kev ntseeg siab ntawm qhov kev xeem.
Cov software muaj zog thiab siv tau yooj yim: DX-2000HC system muaj cov software ntsuas muaj zog uas tso cai rau cov neeg siv yooj yim teeb tsa kev ntsuas, saib xyuas cov txheej txheem ntsuas hauv lub sijhawm, thiab tau txais thiab txheeb xyuas qhov ntsuas tau sai. Lub software muaj cov kev cai qis heev rau cov neeg sim, thiab txawm tias tsis yog cov kws tshaj lij tuaj yeem siv tau yooj yim.
Technical parameters
|
Cov khoom |
350 VA |
500 VA |
1000 VA |
|
Input zog |
AC 200 ~ 240V 50/60Hz 10A |
||
|
Zaub hom |
TFT tseeb xim LCD npo nrog rau-txoj hauj lwm zaub |
||
|
Dimension |
510mmx490mmx230mm |
||
|
Qhov hnyav |
30kg ua |
35kg ua |
40kg ua |
|
Kev thov ib puag ncig |
Environmental kub: 23 ± 15 degree; Environmental humidity: 20-80% RH |
||
|
Sab nraud magnetic teb cuam tshuam |
Zam |
||
|
Thermal equilibrium lub sij hawm |
10 feeb |
||
|
Max. tso zis zog |
350 VA |
500 VA |
1000 VA |
|
Max. tso zis voltage |
±35V |
±50V |
±50V |
|
Max. tso zis tam sim no |
10A |
10A |
20A |
|
Magnetization fixture |
Solenoids, magnetometers, Epstein coils |
||
|
Kev ruaj ntseg tam sim no |
Zoo tshaj 0.05%, 16 lub zog siab tsis siv neeg ntau yam |
||
|
Tam sim no fineness |
<0.003% * Current range |
||
|
Flux ntau yam |
2. 4, 10, 20mWb, plaub lub zog siab tsis siv neeg ntau yam |
||
|
Fluxmeter rhiab heev |
zero point xoom tsib μ Wb (impact method); xoom point one μ Wb (magnetic field scanning method) |
||
|
A/D conversion |
24Bit, 24-ntsis high-precision cov ntaub ntawv tau |
||
|
A/D conversion fineness |
Zoo dua 0.0001%RG |
||
|
Kev hloov pauv D/A |
16Bit, 2-channel ywj siab tso zis |
||
|
D/A conversion fineness |
Zoo dua 0.003%RG |
||
|
Test software |
Txhawb Windows XP, Windows 7 32/64 ntsis, thiab Windows 1032/64 ntsis Cov ntaub ntawv ntsuas tau txais kev cawmdim hauv cov ntawv nyeem ntawm lub hard drive thiab tuaj yeem saib tau txhua lub sijhawm siv chaw ua haujlwm software (txhua yam ntawm Excel, Word, lossis Notepad tuaj yeem saib cov ntaub ntawv no) |
||
Technical ntsuas
Thaum ntsuas cov qauv hlau ntshiab raws li lub teb chaws tus qauv GB/T13888-2009, cov kev qhia tau raws li hauv qab no:
|
Cov ntsuas ntsuas |
Hc (A / m) |
|
Tsis paub meej (k=2) |
2%±2A/m |
|
Repeatability (qhov kub thiab txias) |
1%±1A/m |
Cov qauv kuaj tau
Software interface
Xa, shipping thiab pab
Hauv kev sib tw ua lag luam niaj hnub no, muab kev pabcuam tshwj xeeb rau cov neeg siv khoom yog qhov tseem ceeb rau kev tsim kev sib raug zoo ntev. Peb yog cov neeg siv khoom-centric thiab ua tib zoo soj ntsuam kev tsheb ciav hlau, txoj kev, thiab kev thauj dej los tsim cov kev daws teeb meem. Peb lub hom phiaj kom dhau cov neeg siv khoom xav tau thiab xyuas kom lub sijhawm, nyab xeeb, thiab xa khoom raug raug. Paub txog qhov tseem ceeb ntawm kev ua raws sijhawm, peb ua ntej xa cov kev pabcuam logistics zoo nyob rau txhua lub sijhawm tseem ceeb.
FAQ
Nqe Lus Nug 1:
Kuv yuav ua li cas kom ntseeg tau tias lub xeev magnetization ntawm cov qauv ruaj khov thaum lub sij hawm ntsuas?
Teb:
Ua ntej kev ntsuas: xyuas kom meej tias cov qauv tau ua tiav magnetized kom ua tiav lub xeev magnetization ruaj khov.
Thaum lub sij hawm ntsuas cov txheej txheem: Tsis txhob cuam tshuam sab nraud ntawm cov qauv uas yuav hloov nws lub xeev magnetization, xws li kev vibration, kub hloov, lossis muaj zog sib nqus teb cuam tshuam.
Yog tias xav tau, koj tuaj yeem siv qhov system magnetization muaj nuj nqi los remagnetize tus qauv los xyuas kom meej tias nws tuav lub xeev magnetization ruaj khov thaum lub sij hawm ntsuas.
Nqe lus nug 2:
Yuav txhais li cas rau kev ntsuas ntsuas ntawm Soft Magnetic Coercivity Measurement System?
Teb:
Cov txiaj ntsig kev ntsuas ntawm Soft Magnetic Coercivity Measurement System feem ntau yog nthuav tawm nyob rau hauv daim ntawv ntawm tus lej qhov tseem ceeb ntawm coercivity (Hc). Coercive quab yuam yog qhov tsawg kawg nkaus magnetic teb lub zog yuav tsum tau tig lub magnetized lub xeev ntawm cov khoom nyob rau hauv qhov kev txiav txim ntawm ib tug sab nraud magnetic teb. Tus nqi coercivity siab dua txhais tau hais tias cov khoom tuaj yeem tiv thaiv sab nraud magnetic teb hloov nws lub xeev magnetization. Thaum txhais cov txiaj ntsig ntsuas, nws yuav tsum tau ua qhov kev soj ntsuam raws li cov khoom siv tshwj xeeb thiab daim ntawv thov keeb kwm yav dhau los kom nkag siab seb cov khoom siv hlau nplaum puas ua tau raws li qhov yuav tsum tau ua thiab yuav ua li cas txhim kho thiab txhim kho lawv ntxiv.
Nqe Lus Nug 3:
Puas yog lub kaw lus xav tau kev teeb tsa tshwj xeeb lossis calibration rau cov khoom sib nqus sib txawv?
Teb:
tsis tsim nyog. Lub kaw lus ntsuas qhov ntsuas npog ntau yam khoom sib nqus mos thiab tuaj yeem hloov kho rau qhov kev ntsuas sib txawv los ntawm kev teeb tsa yooj yim. Txawm li cas los xij, peb tuaj yeem muab cov kev daws teeb meem raws li cov neeg siv xav tau rau qee cov khoom sib nqus tshwj xeeb, xws li cov khoom siv tshwj xeeb sib nqus los yog cov duab tshwj xeeb.
