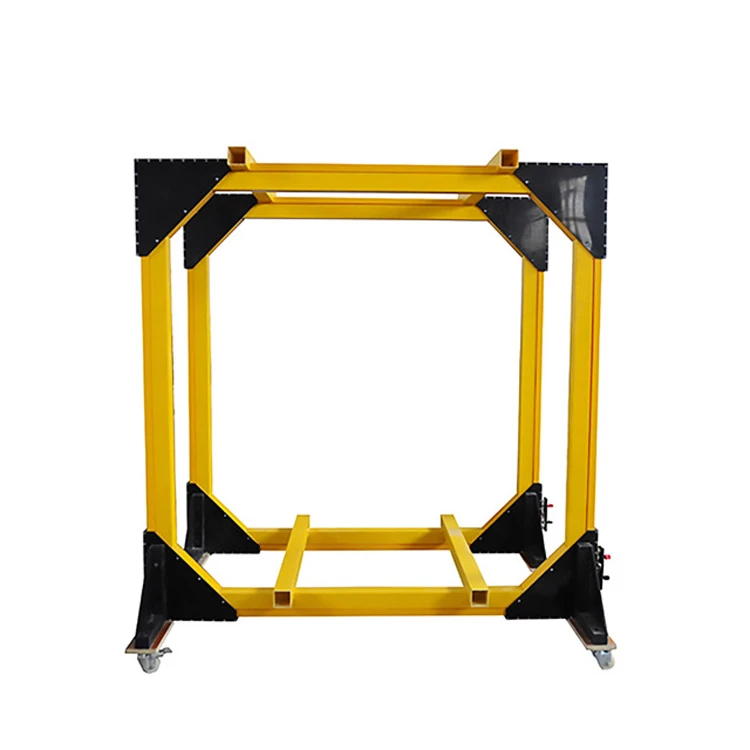

Square Helthoz Chev Taw Qhia
Lub xwm txheej nres xwm txheej ntawm lub ntsej muag yog qhov ntsuas kev sib nqus, kev teeb tsa kev sib nqus, thiab kev tshawb fawb ntawm Magnetization tshwm sim. Nws tuaj yeem simulate kev sib xyaw ua ke ntawm ntsug, kab rov tav, thiab tig sib nqus. Qhov no muaj txiaj ntsig zoo heev hauv kev teeb tsa thiab kev saib xyuas ntawm kev tswj sib nqus, raws li nws tuaj yeem tsim kho cov kev tswj hwm thiab pab tau cov hlau sib nqus kom ua tiav cov hom phiaj tswj tau meej. Ntxiv rau, lub kaus mom kas fes kuj tseem siv tau los ntsuas lub zog thiab cov xim sib txawv, uas haum rau kev sib nqus daim teb caliburing thiab hluav taws xob kev ntsuas.
Txhim kho lub kas fes square cat yog tseem yog ib txoj haujlwm yooj yim heev. Nws tsuas muaj ob lub Cheebtsam, ib qho uas muaj cov xov hlau ntawm ib lub voj voog txhawb nqa, thiab lwm yam uas muaj cov cheil taag qhwv ib ncig ntawm sab nraud. Tsuas txuas lub zog hluav taws xob thiab thauj khoom kom tiav cov kev teeb tsa. Txawm li cas los xij, txhawm rau kom ua tiav cov txiaj ntsig zoo tshaj plaws, nws yog ib qho tsim nyog los xyuas kom meej qhov txuam ntawm cov load voltage thiab cov kauj, txwv tsis pub tus neeg sib nqus tiaj tus kheej yuav tsis ua tiav.
Square Hurvhotz Coilkey Nta & Qhov Zoo:
✅ Multi-Directional Simulation: Simulates ntsug, kab rov tav, thiab tig sib xyaw ua ke rau kev ntsuas-zoo rau kev kuaj thiab cov tshuab nqus sib nqus lossis tshuab.
✅ Cov Kev Ncaj Ncees Loj & Kev Lom Zem: Ua tiav qib siab ntawm kev sib nqus kev sib nqus ntawm cov khoom sib nqus ntawm qhov chaw, qhov tseem ceeb rau kev sim ua kom zoo thiab ntsuas dua.
✅ Tus Neeg Siv Cov Qauv Tsim: Ob-tshooj sib dhos-suav nrog cov ncej txheem-mounted hlau kauj thiab ib qho ruaj khov sab nraud winding. Yooj yim plug-thiab-si installation.
✅ Qauv customizable: Ntau yam qauv nrog ntau sab ntev, teb lub zog (txog 50 gauss), thiab cov chaw nyob ua kom tau raws li cov kev xav tau.
✅ Chaw-Ua Tau Zoo: Tsis tas yuav muaj rau sab nraud daim teb cov khoom sib xyaw, ua kom nws zoo nkauj rau qhov chaw tsis muaj chaw.
✅ Muaj zog, tsim kev nyab xeeb: Ua los ntawm ruaj khovIav Fiber Reflitced Uas(Tsis yog yas txawv teb), txhim kho kev nyab xeeb thaum thauj khoom thiab siv.
Daim Duab Ntawm 3D Square HLemholtz Chev
Kev Qhia Tshwj Xeeb parameter ntawm cov xwmfab Kaus mom Hlau Coil Specification Parameter
| Tus qauv | Sab ntev (cm) | Central Teb (GS) | Kev sib koom | Homogeneity Cube sab ntev (cm) | Txhua qhov chaw muaj hluav taws xob ntev | Ib qho ntawm qhov hnyav (kg) | Peb Txoj Kev Nyuaj Siab (kg) |
| % | |||||||
| Dxf 150-2 | 300 | 2 | 5 | 100 | 540 ~ 680 | 84 | 280 |
| 1 | 75 | ||||||
| Dxf 100-2 | 200 | 2 | 0.5 | 40 | 260 ~ 320 | 38 | 150 |
| 0.1 | 28 | ||||||
| Dxf 75-10 | 150 | 10 | 0.05 | 15 | 600 ~ 800 | 90 | 300 |
| 0.01 | 10 | ||||||
| Dxf 75-2 | 150 | 2 | 5 | 50 | 150 ~ 180 | 21 | 70 |
| 1 | 37.5 | ||||||
| Dxf 60-10 | 120 | 10 | 0.5 | 24 | 500 ~ 620 | 68 | 230 |
| 0.1 | 17 | ||||||
| Dxf 60-2 | 120 | 2 | 0.05 | 12 | 100~120 | 18 | 60 |
| 0.01 | 8 | ||||||
| Dxf 50-20 | 100 | 20 | 5 | 33 | 600 ~ 800 | 72 | 260 |
| 1 | 25 | ||||||
| Dxf 50-10 | 100 | 10 | 0.5 | 20 | 350 ~ 500 | 47 | 155 |
| 0.1 | 14 | ||||||
| Dxf 50-2 | 100 | 2 | 0.05 | 10 | 70 ~ 100 | 15 | 50 |
| 0.01 | 6.6 | ||||||
| Dxf 40-50 | 80 | 50 | 5 | 2.6 | 1000 | 98 | |
| 1 | 20 | ||||||
| Dxf 40-10 | 80 | 10 | 0.5 | 16 | 200 ~ 320 | 30 | 110 |
| 0.1 | 11 | ||||||
| Dxf 40-2 | 80 | 2 | 0.05 | 8 | 45 ~ 80 | 12 | 40 |
| 0.01 | 5.3 |
Cov xwm txheej ib txwm muaj
|
Tus qauv |
Tsis |
Siv duab |
|
3dxf 16-1 |
Peb-Sab Square Chev Sib nqus teb siv hauv txhua qhov loj me: 1Gs; Sib nqus cov chaw sib nqus tiaj nyom: 1 * 10-3; Cov cheeb tsam niaj hnub: 4 5}} * 45 * 45 hli; Peb-seem sib npaug sib luag sab ntev: 320mm; |
|
|
3dxf17. 5-50 |
Peb-Sab Square Chev Chaw Sib Koom Sib Nraus Lub Zog: 50GS; Sib nqus cov chaw sib nqus tiaj nyom: 1 * 10-3; Cov cheeb tsam niaj hnub: 50 * 50 * 50 * 50 hli; Qhov tsawg kawg nkaus nruab nrab sab ntev: 35 0 mm; kev sib dhos: 0.1%; Fais fab mov: 20W. |
|
|
Dxf 120-10 |
Ib-Sab Sij Huam Square Chev Sab ntev: 2400mm; Muaj zaus: 50Hz; Kev sib nqus: 10gs; Cov cheeb tsam niaj hnub: 600 * 600 * 600 hli; Cov Kev Cai: 1% |
|
|
3dxf 120-5 |
Peb-Sab Square Chev Chaw Sib Koom Sib Koom Zog: 5GS; Sib nqus cov chaw sib nqus tiaj nyom: 1 * 10-3; Cov cheeb tsam niaj hnub: 320 * 320 * 320mm; Sab ntev: 2400mm;. |
|
|
3dxf 40-15 |
Peb-Sab Square Chev Center sib nqus teb siv zog: 15GS; Sib nqus cov chaw sib nqus tiaj nyom: 1 * 10-3; Cov cheeb tsam niaj hnub: 120 * 120 * 120mm; Sab ntev: 800 hli; |
|
|
3dxf 45-1 |
Peb-Sab Square Chev Center Sib Nqus teb lub zog: 1. 0 gs; Sib nqus cov chaw sib nqus tiaj nyom: 1 * 10-3; Cov cheeb tsam niaj hnub: 135 * 135 * 135mm; Sab ntev: 900mm; |
|
|
DX4F 90-5 |
Ib-seem chev Chaw Sib Nqus Teb Lub Zog: 5 GS; Kev sib txawv ntawm cov teb sib nqus: δh / h =5}} {1}}; Uniform Zone: φ500 * 1000mm; Sab ntev: 1800mm; Lub Zog Hluav Taws Xob: 540W (6A90V) |
|
